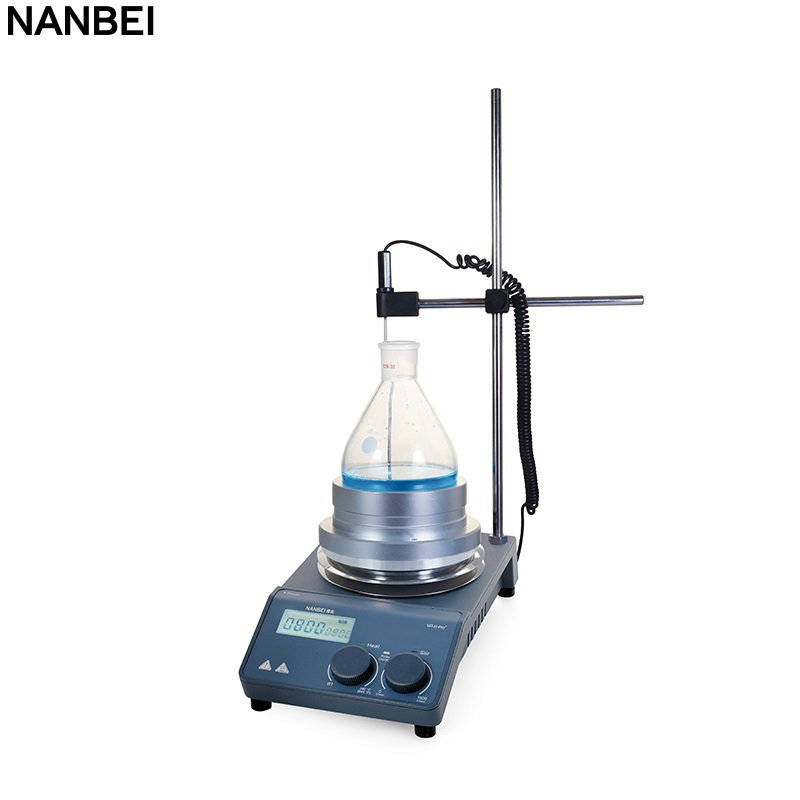

Laboratory Brushless DC motor Hotplate Magnetic Stirrer Instrument

Key Specifications/Special Features:

NB-H-ProA Hotplate Magnetic Stirrer

Features:
• Digital control with max. temperature at 340℃,max speed up to 1500rpm.
• Aluminum alloy work plate with flat plane provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.

Specifications	NB-H-ProA
Work plate dimension	φ135mm(5inch)
Work plate material	Aluminum
Motor type	Brushless DC motor
Heating temperature range	Room temp.-340℃, increment 1℃
Temperature display accuracy	±0.1℃
Heating power	600w
Speed range	100-1500rpm resolution±1rpm
Max. stirring quantity[H2O]	20L
Speed display	LCD
Temperature display	LCD
Motor rating input	18w
Motor rating output	10w
Max. magnetic bar[length]	80mm
Temperature control accuracy	±1°C(<100℃) ±1%(>100℃)
External temperature sensor	PT1000 (accuracy ±0.2℃)
Over temperature protection	420℃
"Hot" warning	50℃
Data connector	RS232
Protection class	IP21
Voltage	100~120/200-240V 50/60Hz
Power	650w
Dimension[WxDxH]	280×160×100mm
Weight	2.8kg
