200L Laboratory Double Chemical Glass Reactor

Introduction of Chemical Glass Reactor:

The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, and biological products industries. The Chemical Glass Reactor adopts the principle of constant speed stirring to uniformly stir the raw materials under vacuum negative pressure conditions, so that the materials can fully react in the kettle. The glass interlayer can be connected to the outside of the high-temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. The external refrigeration cycle equipment can also be used to react to the low temperature reaction in the kettle; if there is heating and cooling during the material reaction process, an external high temperature and low temperature cycle device can be used. Moreover, the contact parts with the material are all made of high temperature resistant, corrosion resistant high borosilicate glass and polytetrafluoroethylene material, which is particularly suitable for the decomposition reaction of variable biological products and is not easy to react with various materials.

Work criteria of Chemical Glass Reactor :

Under the condition of vacuum negative pressure, use the speed control knob to stir the stirring rod at a constant speed to make the materials fully react in the kettle, and indirectly heat or cool the materials in the kettle. The glass interlayer is heated by an external heating or cooling device, and the reaction process is heated during the heating process. The solvent vapor obtained is quickly cooled by the cooling coil of the glass condenser, distilled or refluxed. After the reaction is completed, the material can be quickly discharged through the inclined discharge valve.
The main capacity of the double glass reactor is 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L, ​​200L, all of which have the function of reducing emissions. Universal casters over 10 liters are equipped with easy-to-move functions and a temperature display function in the kettle.
It can be used in conjunction with a vacuum pump to improve work efficiency; the cooling coil of the glass condenser can be used with a low-temperature coolant circulating pump to improve recovery efficiency. Please purchase supporting equipment according to the wishes of customers. The middle layer of the kettle body can be equipped with heating, cooling equipment or high and low temperature circulation devices according to the material reaction requirements.

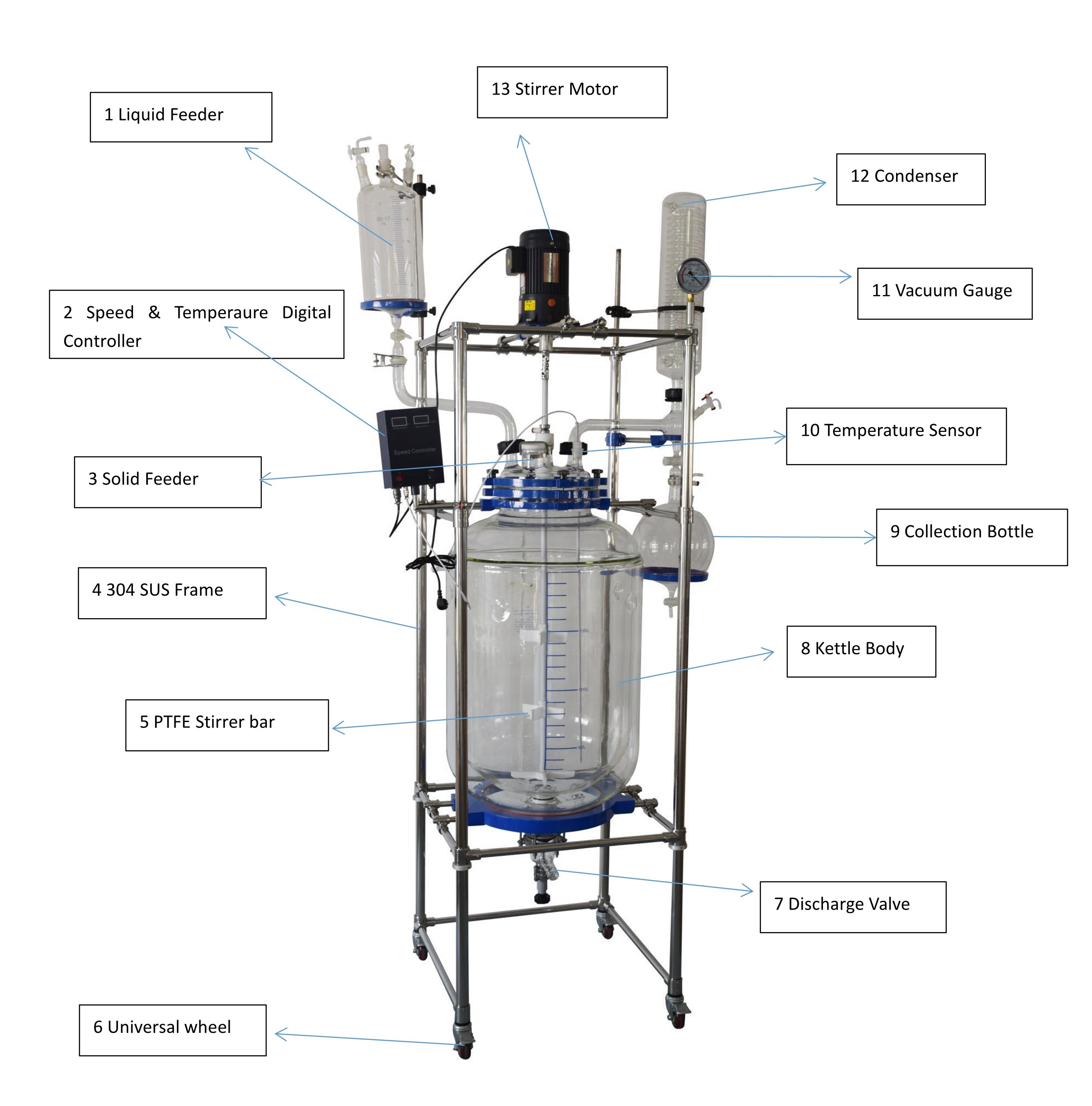

Details of Chemical Glass Reactor :

Details of Chemical Glass Reactor
