    Laboratory Explosionproof Batch 20L Jacketed Glass Reactor

    Ask Lasest Price
    Brand Name : NANBEI
    Model Number : NB-20
    Certification : CE/ISO/SGS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500000
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

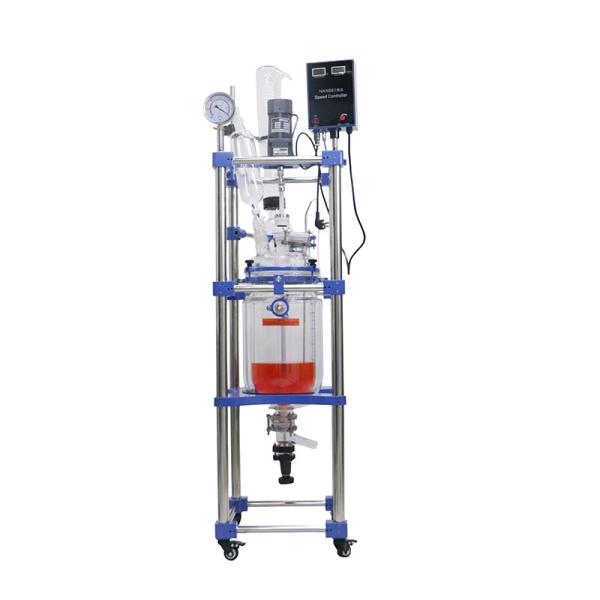

    Laboratory Explosionproof Batch 20L Jacketed Glass Reactor

    Jacketed Glass Reactor

    The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. And other operations; external refrigeration cycle equipment can also be used to react to low temperature reaction in the kettle; if there is heating and cooling in the material reaction process, external high and low temperature circulation devices can be used. Moreover, the contact parts with materials are all made of high-temperature and corrosion-resistant high borosilicate glass and polytetrafluoroethylene material, which is especially suitable for the reaction of easily decomposing denatured biological products, and is not easy to react with various materials.

    Laboratory Explosionproof Batch 20L Jacketed Glass ReactorLaboratory Explosionproof Batch 20L Jacketed Glass Reactor

    Working Principle

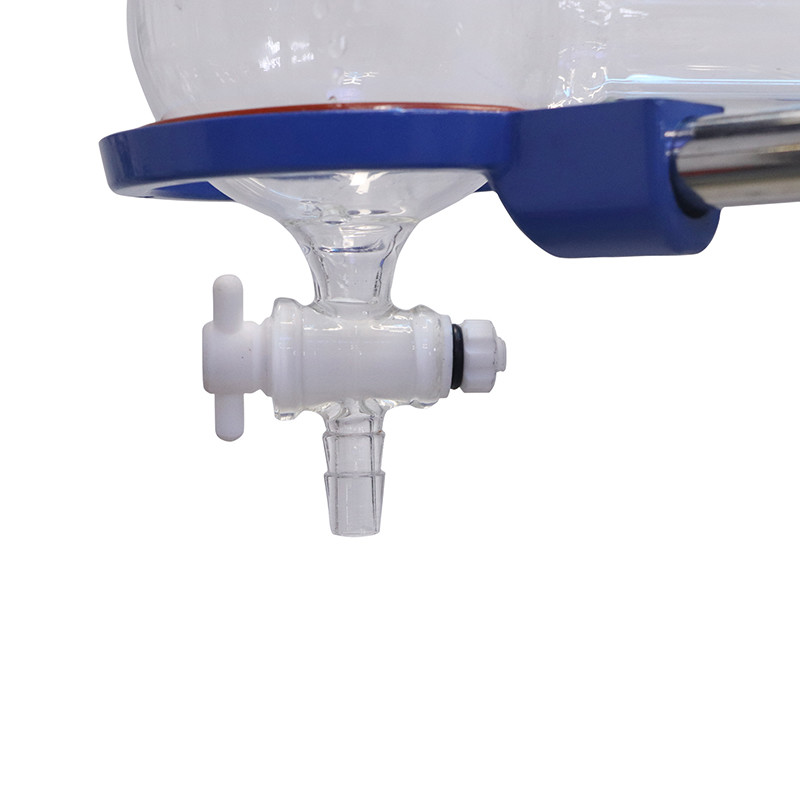

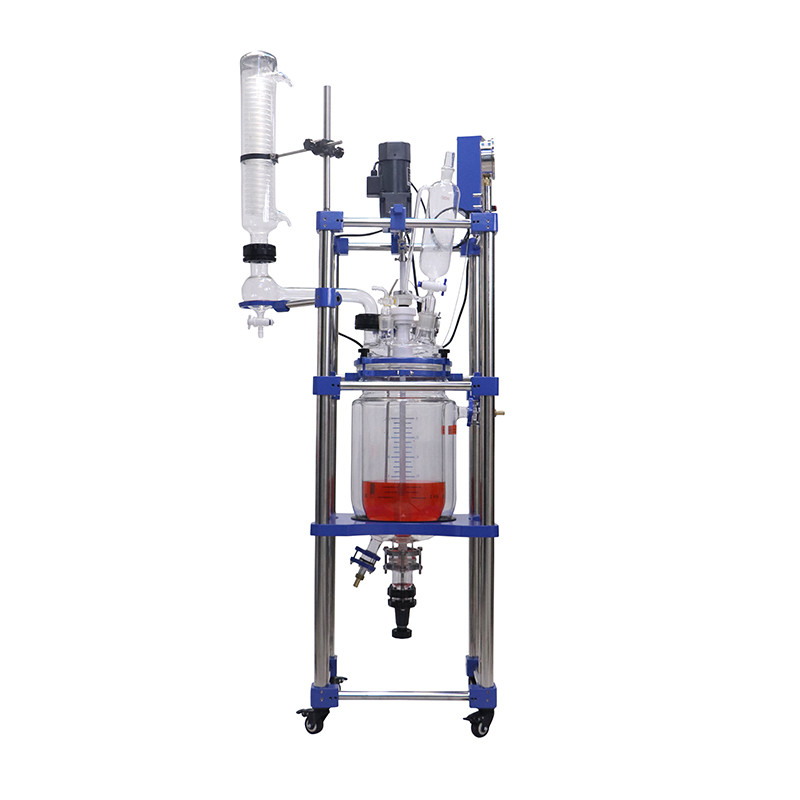

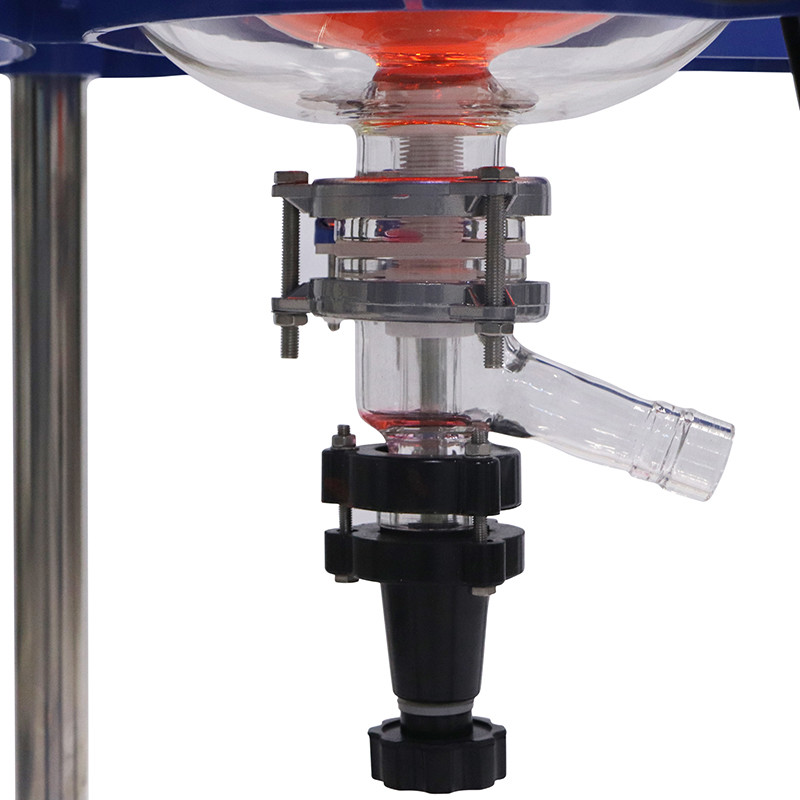

    Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.


    The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L,200L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.


    It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.

    Laboratory Explosionproof Batch 20L Jacketed Glass ReactorLaboratory Explosionproof Batch 20L Jacketed Glass ReactorLaboratory Explosionproof Batch 20L Jacketed Glass ReactorLaboratory Explosionproof Batch 20L Jacketed Glass Reactor

    ModelNB-10LNB-20NB-25LNB-30L
    Glass MaterialGG-17GG-17GG-17GG-17
    Frame Material304 Stainless steel304 Stainless steel304 Stainless steel304 Stainless steel
    Fittings Material304 Stainless steel304 Stainless steel304 Stainless steel304 Stainless steel
    MovesBrake CasterBrake CasterBrake CasterBrake Caster
    Reaction bottle capacity10L20L25L30L
    Jacketed Capacity6L8L8L10L
    Flanged out of the oil circulation portLow feed high outletLow feed high outletLow feed high outletLow feed high outlet
    Reaction bottle coverSix portSix portSix portSix port
    Discharger port distance to ground450mm450mm450mm450mm
    Temp. range-80-250℃-80-250℃-80-250℃-80-250℃
    Vacuum degreee0.098Mpa0.098Mpa0.098Mpa0.098Mpa
    Stirring speed0-450rpm0-450rpm0-450rpm0-450rpm
    Stirring diameter12mm12mm12mm12mm
    Stirring power90W1/3120W1/3120W1/3120W1/3
    Coltage(V/Hz)220V/50Hz220V/50Hz220V/50Hz220V/50Hz
    Dimension(mm)520*520*2000560*560*2100560*560*2300760*560*2300
    Packing size(mm)1370*590*8001480*660*8101670*670*8601720*680*850
    Packign weight(KG)68kg80kg88kg88
