8.0M px Handheld PC scanning portable leaf area meter with WiFi / 4G Network Interface

NMJ-C Intelligent Leaf area meter

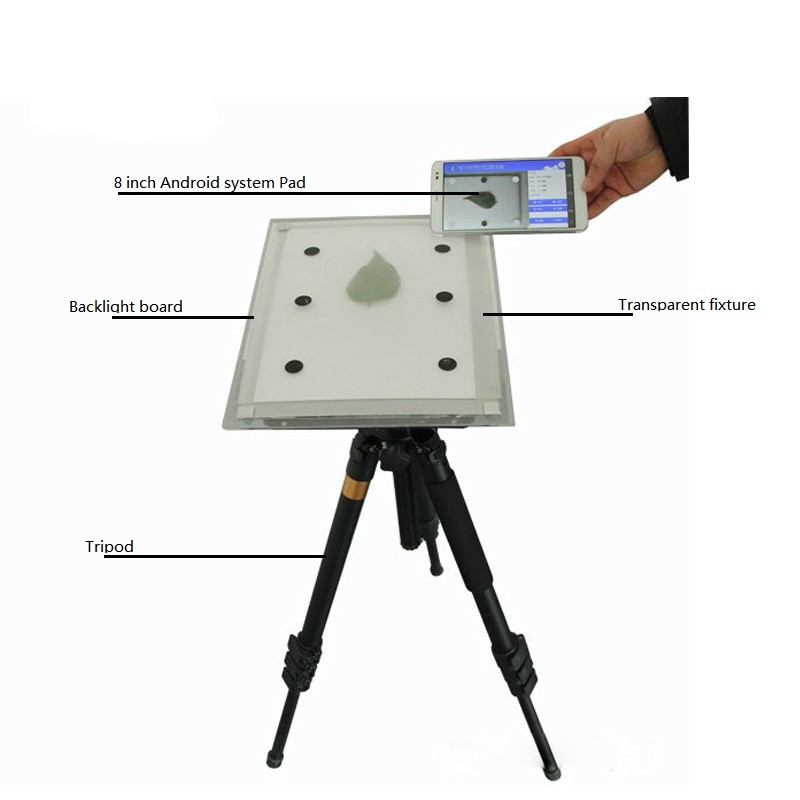

Intelligent leaf area measurement system is composed of a backlight device and a tablet with embedded software. The use of advanced image processing technology, based on leaf feature extraction, spatial transformation, edge detection theory, morphology and other technologies integrated design software. GF applied to the fields of agriculture field crop leaf area measurement.

Feature of Intelligent Leaf area meter

Hardware Features:

1, Android system with simple operation, application of human, intelligent and scalable.

2, two kinds of backlight optional.

System Features of Intelligent Leaf area meter

1. Android system with simple operation, user-friendly, intelligent and scalable.

2. 7-inch full-color touch screen, 8 million pixels, the software automatically calculates the leaf area after shooting, the output results.

3 powerful storage, comes with 16G memory card.

4. Data View Diversification: data can be stored, you can view the report can also export Excel spreadsheets to the computer or WiFi server. Data statistics, analysis of intelligence.

5. With manual correction function, can cut, repair, automatic cutting petiole, etc., to ensure high-precision measurement.

6. There are common, dark, light color three algorithms optional, take pictures, according to the blade color to choose the appropriate algorithm to ensure accuracy.

7. After taking pictures, the system can automatically calculate the area, perimeter, leaf length, leaf width, the number of wormhole and the same screen.

Technical parameters of Intelligent Leaf area meter

Scope: Different sizes of green leaves, yellow leaves, red leaves and other common plant leaves

Measuring range: 5 ~ 100 square centimeters

Number of tablets Accuracy: without backlight ± 3%, plus backlight ± 2%;

Software system: Android4.2.2 above

Size: 7 inch full color touch screen

Rear camera: 8 million

Resolution: 1920 * 1200

Memory: 16G

Network Interface: WiFi / 4G

Standard charging power: DC5V1A

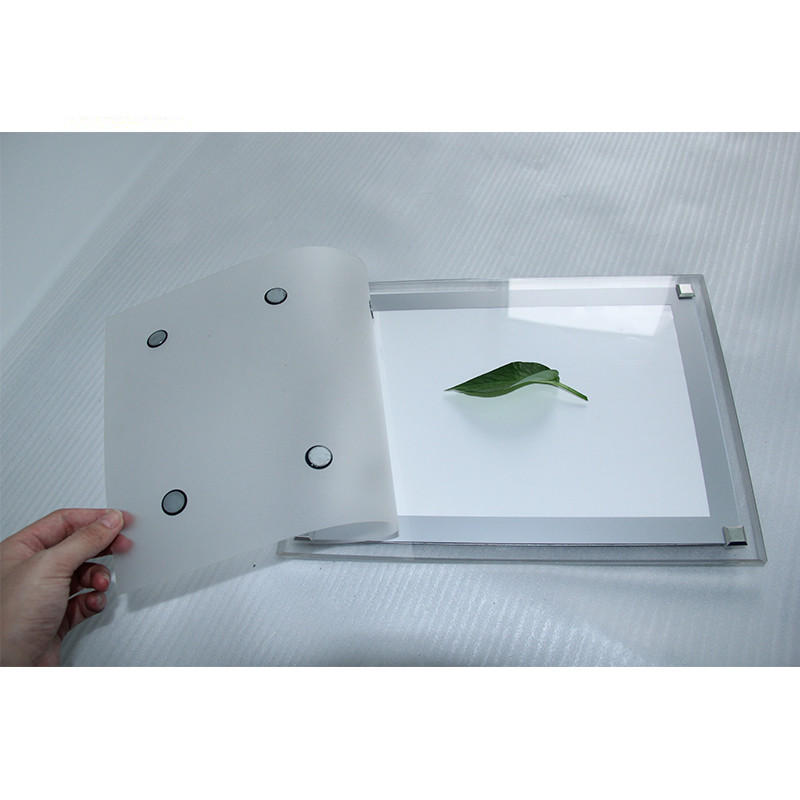

Background board device:

Background light source: highlight LED lights

Power Interface: DC-2.1

Standard power supply: DC5V5A

Power supply range: DC5~12V

Shell material: acrylic shell, material chemical stability, weather resistance

Device size: 250*180*1.5

Transparent cover size: 250*180*0.5

Weight: 0.2kg
