    Real Time Biotechnology Lab Equipment Pcr System Gentier 96 Touch Screen

    Ask Lasest Price
    Brand Name : NANBEI
    Model Number : Gentier96
    Certification : CE
    Payment Terms : TT, LC, Paypal, Western Union, MoneyGram…
    Delivery Time : 7-10days
    Price : Negotiable
    • Product Details
    • Company Profile

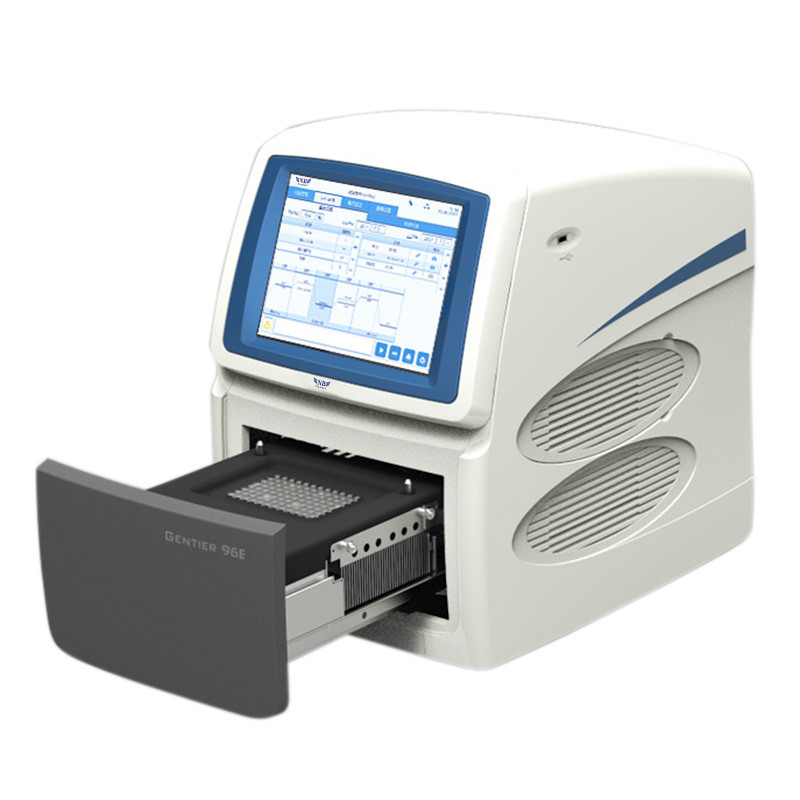

    Real Time Biotechnology Lab Equipment Pcr System Gentier 96 Touch Screen

    Real-time pcr system Gentier96


    Advantage

    >10 inch touch screen,all commends in one touch

    >Easy-to-use Software

    >Advantage Temperature Control

    >LED-excitation and PD-detection, 7 seconds top optical scanning

    >Outstanding and powerful data analysis functions


    Real Time Biotechnology Lab Equipment Pcr System Gentier 96 Touch ScreenReal Time Biotechnology Lab Equipment Pcr System Gentier 96 Touch Screen

    Parameters

    ModelGentier96EGentier96SGentier96RGentier96C
    Thermal block
    Sample capacity(wells)96
    Reaction volume0-100ul
    Consumable0.2ml 96-WELL plates(unskirt)0.2ml 8-strip tubes,0.2ml PCR single tube(Optical flat cap. Clear,frosted,white tube)
    Temperature range

    0℃-100℃

    Heating/cooling systemPeltier
    Max heating rate6.1℃/sec
    Average heating rate4.5℃/sec
    Max cooling rate5.0℃/sec
    Average cooling rate2.8℃/sec
    Temperature accuracy±0.1℃
    Temperature uniformity±0.1℃
    Gradient range1℃-40℃N/A1℃-40℃N/A
    Gradient block12row12row8row
    Special temperature protocolGradient PCR, Long PCR, Touch Down PCR

    Long PCR,

    Touch Down PCR

    Gradient PCR, Long PCR, Touch Down PCRLong PCR, Touch Down PCR
    Heat Lid
    Temperature rangeRoom temperature-110℃
    Optical system
    Excitation Source6LEDs4LEDs
    DetectorPhotodiode
    Detection positionExcitation and scan at top
    Detection method6 channels scanning at the same time, no edge effect
    Detection time7 seconds for 96 wells for all channels
    Range of excitation/emission wavelengths(nm)

    1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green, LC Green)

    2. 527/563(HEX,VIC,TET,JOE)

    3. 580/616(ROX,Texas Red)

    4. 632/664(Cy5)

    5.680/730(Alexa Fluor680)

    6.465/616(FRET)

    1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green, LC Green)

    2. 527/563(HEX,VIC,TET,JOE)

    3. 580/616(ROX,Texas Red)

    4. 632/664(Cy5)


    Probe Taqman Probe,Molecular beacons probe, scorpion probe,FRETTaqman Probe,Molecular beacons probe, scorpion probe,
    MultiplexingUp to 6 targetsUp to 4 targets
    Fluorescence Linearityr≥0.990
    Fluorescence Dynamic RangeAdjustable
    Performance
    Sample Linearity/r/≥0.999
    Sample repeatabilityCt value CV≤0.5%
    Sample dynamic Range1-1010
    Software Functions
    Data Analysis ModesQualitative analysis, Absolute quantification, Relative quantification, Genotyping analysis, Endpoint analysis, Melt curve analysis, High Resolution Melting
    Control Modes

    1. 10.4touch screen

    2. PC direct control

    3. WLAN control(one PC can control max 10 unit, and device can be controlled by any PC in the WLAN)

    Sample DrawerTouch Screen commend
    Data StorageUpload and download through USB disk, 1000 results can be stored in machine
    Power failure protectionAutomaticly start running experiments after power supply, no need wait PC software
    Customize ReportTempletes reserved, report can customized
    Administration ManagementAdministratior can set functions limits for users
    Transport LockerAutomaticly detect transport locker
    Fault ManagementFault report and analysis,solution instruction
    LIS connectionCSV,Excel,TXT format data output, open port for LIS connection
    Others
    PC operating systemWin7, Win 10
    Communication Port1 ethernet and 3 USB
    Foot pprint(WxDxH)355mmX480mmX485mm
    Weight30kg
    Power usageAC100 to 125V/200to 240V(50/60HZ)
    Power consumption900VA
    Work environmentTemperature:10℃~30℃ Humidity:20%~85%
