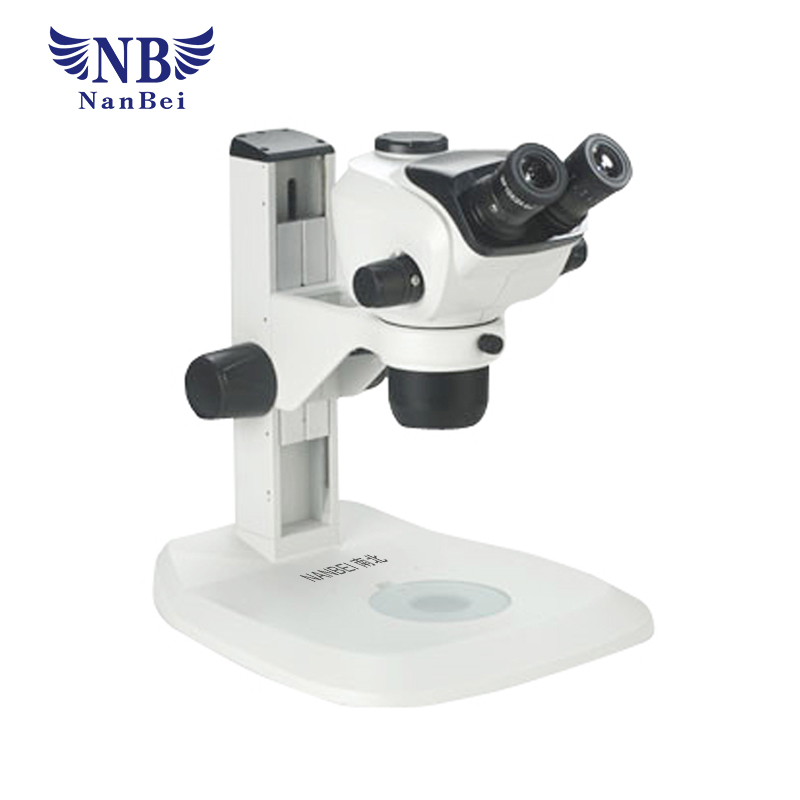

    SZ680BP Molde Stereo Microscope With Binocular Continuous Zoom

    Ask Lasest Price
    Model Number : SZ680BP
    Price : USD517-USD887/set
    Brand Name : NANBEI
    Certification : CE,ISO
    Delivery Time : 7-10days
    Payment Terms : TT, LC, Paypal, Western Union, MoneyGram…
    • Product Details
    • Company Profile

    SZ680BP Molde Stereo Microscope With Binocular Continuous Zoom


    SZ680BP Molde Stereo Microscope With Binocular Continuous Zoom


    Brief introduction of stereo microscope:

    SZ series of high-end products, a collection of domestic and foreign advantages of resources, research and development with the international advanced level of the new generation of products. Applicable to school teaching, medical laboratory testing, factory testing, laboratory research


    Features of NANBEI stereo microscope:

    ·1. Excellent optical and ergonomic design Left and right optical path 12 ° body angle, three-dimensional visual sense of strong; large field of view, high zoom ratio.Using 35 ° viewing angle, which is conducive to long-term sitting observation. 330mm × 300mm large base, high stability, suitable for a variety of specimens anatomy. The machine adopts the grid-type structure system, the whole built-in rotary shaft zoom mechanism.

    ·2. International standards of product design, sophisticated manufacturing process and quality Elegant appearance, international brand style, space capsule integrated host design. (High-precision mechanical manufacturing, precision assembly process), material high-end stability (PC resin shell, aluminum alloy, high-precision, high-speed, high-speed, Gold, copper alloy structural parts, austenitic stainless steel transmission parts).

    3. The operator can select and limit the magnification range of the mirror according to the need, and the integer magnification function, the operator can precisely locate each integer rate.

    4. Using rotary image output switching mode, 100% light energy output, can also choose to observe, photographic synchronous output mode.



    Product SeriesSZ680
    Objective lens zoom range0.68X-4.7X
    Zoom ratio1:6.8
    Like square field diameter (mm)Φ23
    Front working distance (mm)110
    Perspective( °)12
    Observation angle( °)35
    Eye pupil distance range(mm)50-75
    Photographic camera output splitting ratio1
    Observation, photographic synchronous output (50:50) optional
    Round pillar bracket focusing stroke(mm)115
    Square column stent focusing stroke(mm)80
