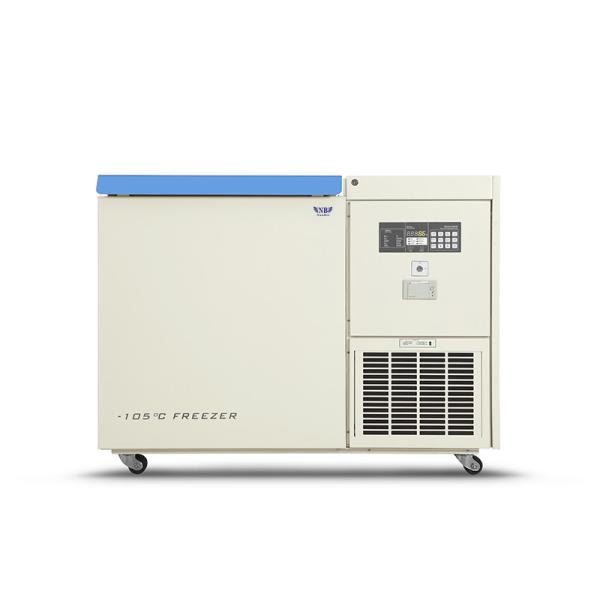

NANBEI Pharmacy Medical Refrigerator Minus 105 Degree Ultra Low
Temperature Freezer
Storage of viruses, germs, red blood cells, white blood cells,
skin, bones, semen, biological products, ocean products, electronic
devices, low temperature tests of special materials, etc.
Applicable to blood stations, hospitals, epidemic prevention
stations, research institutes, electronic chemical and other
enterprise laboratories, biomedical engineering research
institutes, ocean fishing companies, etc.
Feature
1. Working conditions: ambient temperature 10 ~ 32℃, working
environment humidity: 20-80%, power supply 220V ± 10%, 50 Hz ± 1HZ.
2. Style: Horizontal.
3. Display: LED digital temperature display, real-time display of
the temperature inside the box and various setting parameters
(temperature, voltage, ambient temperature, compressor operating
status, etc.), the operating status is clear at a glance.
*4. Temperature control: High-precision microcomputer temperature
control system, the temperature inside the box is arbitrarily set
within the range of -10 °C to -105 °C and can be stably operated.
5. Box material: high-quality structural steel plate, advanced
anti-corrosion phosphating and spraying process.
*6. Liner material: It is made of stainless steel inner liner,
anti-corrosion, long service life and easy to clean.
*7. Insulation material: thick insulation layer and VIP insulation
board, multi-channel door seal design, good insulation effect.
*8. The fluorine-free environmentally friendly refrigerant,
invented by the Institute of Physics and Chemistry of the Chinese
Academy of Sciences, has a unique refrigeration circuit with
independent intellectual property rights, which has a faster
cooling rate and a more uniform temperature. The single-stage
oil-slip compressor refrigeration technology has a stronger
refrigeration capacity.
*9. Secure storage: perfect sound and light alarm system (high and
low temperature, open door, abnormal voltage, power failure alarm,
sensor failure, condenser heat dissipation, system failure, etc.),
and the storage of items is safer;
10. Boot delay and stop interval protection function to ensure
reliable operation; keyboard lock and password protection function
to prevent arbitrary adjustment of operating parameters;
*11. Imported high-efficiency compressor, strong power, more
reliable quality, imported EBM low noise fan, energy efficient.
Condensing fan and compressor cooling fan can be intelligently
started and stopped according to the change of ambient temperature
and the operating state of the compressor.
12. Test hole design to facilitate testing the temperature inside
the box.
*13. Standard temperature recording printer, you can read
temperature data at any time.
| Model | NB-MW138 | NB-MW328 |
| Volume | 138 liters | 328 liters |
| Dimension | 1320*890*1009mm | 2005*890*1009mm |
| Inner size | 490*470*582mm | 1200*470*570 |
| N.W/G.W | 200kg/252kg | 288kg/344kg |
| Voltage | 220V ± 10%, 50 Hz ± 1HZ. | 220V ± 10%, 50 Hz ± 1HZ. |
| Temperature range | -10 °C to -105 °C | -10 °C to -105 °C |
